General:

The HD fiber converter can receive un-compression HD video (see HD fiber-link camera list) through one core single mode optical-fiber, and it is able to covert optical signal to HDVI(Model name:61F2H-D) or HD-SDI(model name:61F2S-D). In addition, it also supports audio and RS-232C serial communication.





  • Features
  • Spec
  • Dimension
  • App Notes
  • Download
  • Optic Fiber Receiver Function, up to 2 km
  • One core optical fiber- 2 channel Designed
  • Support HD-video/Audio/ Ctrl
  • HD-video format :720p@25/30/50/60,1080p@25/30,1080i@50/60
  • Embedded audio (optional )
  • Ancillary information-bi-directional
  • Input interface: SC fiber connector/single mode
  • Convert fiber signal to HD-SDI or HDVI
  • Ctrl interface: RS-232/RS-485(Optional)
  • Real-time status LED indicators for troubleshooting and monitoring
  • receive up to 2 km without Optical Attenuation

I/O

 Description 61F2S-D 61F2H-D

Fiber-Inputs

Fiber‐Optical SC type Single mode X1 ch
Wavelength:1310/1550nm
Bandwidth:2.5G(Down-streaming )/ 6M(Up-streaming)
Audio format-in : 2ch(Optinal function)
AUX linking: Ctrl bi-directional.

Y



Y



BNC-Outputs

Format: HD-SDI (SMPTE 292M)
Supported Video-out
720p 50/60, 1080i 50/60,1080p25/30
Without Audio

Y



N



HDVI –Outputs

Supported Video-out
720p 50/60, 1080i 50/60,1080p25/30
Without Audio

N



Y


 Power supply-in DC 12V Regulated/ 500mA Y Y

AUX-port:

 RS-232/ RS-485 (Optional), GPIO(Optional), Y Y


Dimension(Unit:mm):

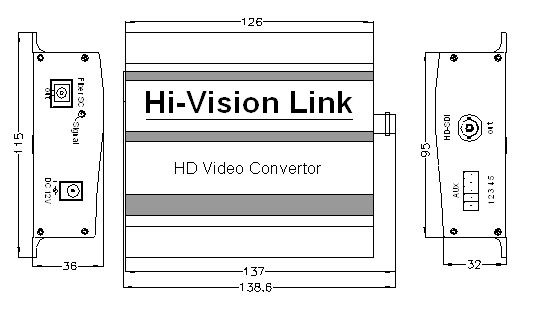

model name: MHD:61F2S-D

Fiber convers SDI

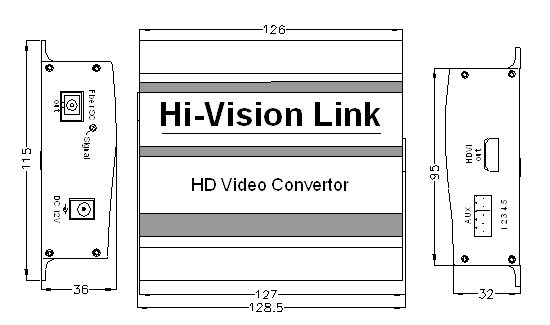

Model name: MHD-61F2H-D

fiber convers to HDMI

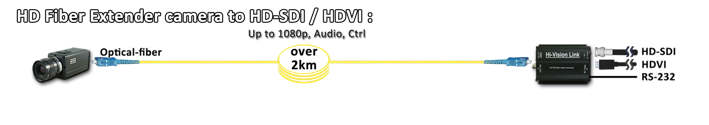

Application Diagram:



Corresponding HD camera list:

Model name

Description

MHD-93MG5SH-D

Support Fiber-link
1.3 Mega CMOS Aspect Ratio 4:3/16:9 1080p/720p/3DNR/OSD YUV 422 ,Ctrl(RS-232)out via Optic fiber/CVBS,
