What’s HD fiber-link?
Mintron HD fiber-link system, bandwidth designed is up 2.5Gbps, allows to transit Uncompressed HD-definition Video, embedded audio and Crtl(RS-232)ove
r one core fiber, transmission distance up to 2 Km . The system includes HD Fiber-link camera, HD fiber-link receiver and HD-fiber link transceiver, this system have the best video solution for long-distance application which is no delay, no compressed side effect and real-time video in transmission processing, the HD fiber–link transmitting is by light rather than electron, so it not happen to any EM (electromagnetic) Interference, which is very important in number of applications, such wring where is near electrically noisy machinery .
It is ideally application for traffic surveillance, military, government, industrial control, hospital and requires data security.
HD Fiber-link Advantages：
- 16-Bit Uncompressed HD-Video Transmission
- Near zero latency video
- Supports Video format 720p/1080p/1080i
- Supports one core optic-fiber to deliver HD-video , audio and Ctrl RS-232
- WDM for Highest Quality Video Transmission
- No EMI, RFI, Cross Talk, and Ground Loop
- No Electrical or Optical Adjustments Required
- Transmit up to 2 km without Optical Attenuation
HD Fiber-link Products

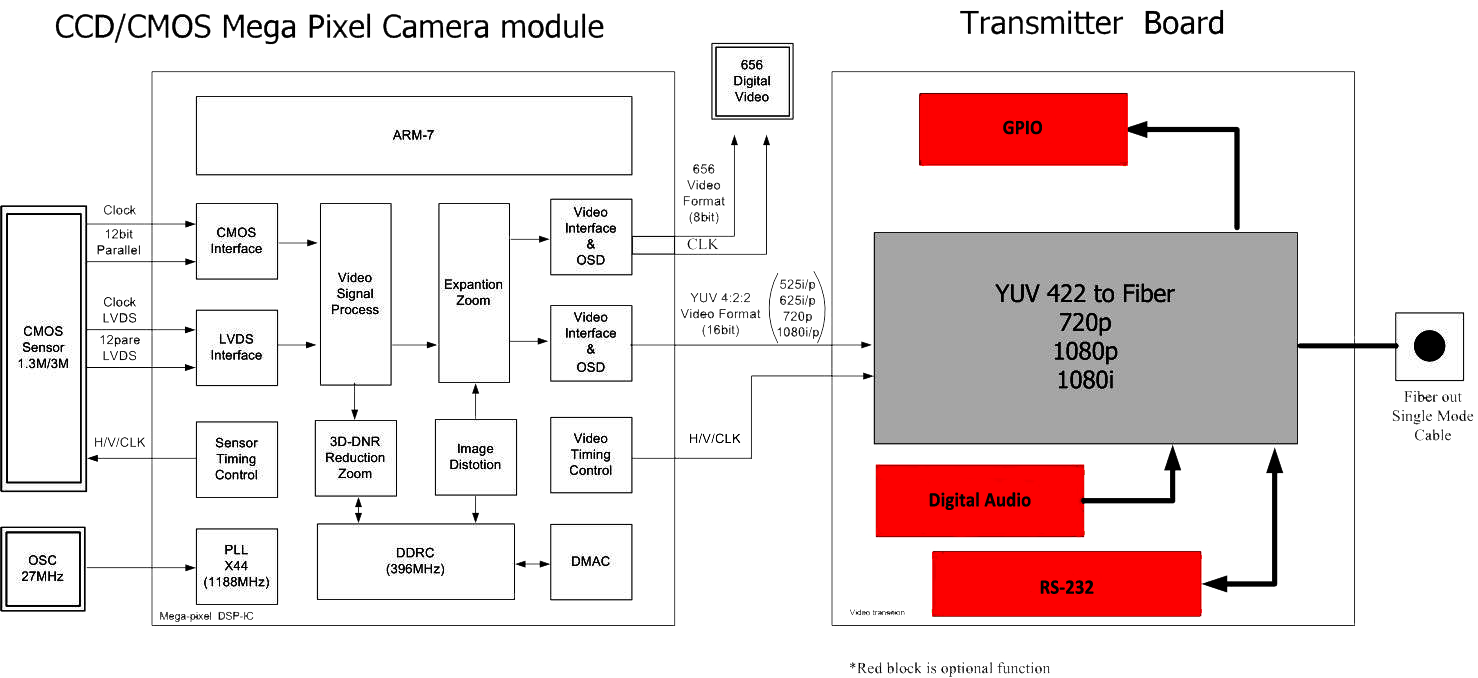

HD Fiber-link CameraOur all of HD camera series are possible to provide Optic-fiber

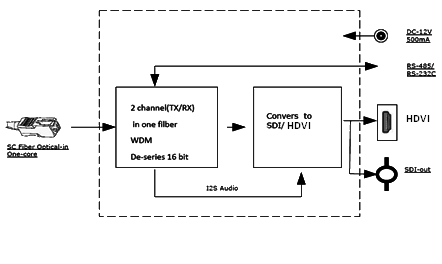

HD Fiber-link Receiver
FEATURES
- Optic Fiber Receiver Function
- Support HD-video/Audio/ RS-232
- Multi-format HD-video out :720p/1080p/1080i
- embedded audio
- ancillary information
- Input interface: SC fiber connector/single mode
- Output interface : Video/Audio BNC HD-SDI(SMPTE 292M) or HDVI 1.0
- Aux data interface: 9 Pin D-Sub RS-232/RS-485(Optional)
- Real-time status LED indicators for troubleshooting and monitoring

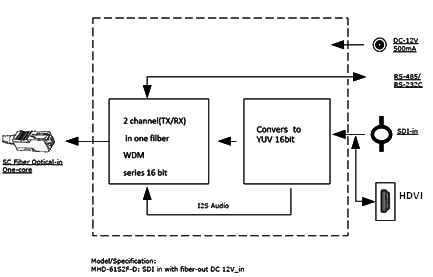

HD Fiber-link Transceiver
FEATURES
- Optic Fiber Transceiver Function
- Support HD-video/Audio/ RS-232
- Multi-format HD-video out :720p/1080p/1080i
- embedded audio
- ancillary information
- Input interface: Video/Audio BNC HD-SDI(SMPTE 292M)
- Output interface : SC fiber connector/single mode
- Aux data interface: 9 Pin D-Sub RS-232/RS-485(Optional)
- Real-time status LED indicators for troubleshooting and monitoring
HD fiber-link Application Diagram：
- The HD fiber-link following as below
- HD Fiber Extender camera to HD-SDI
- HD Fiber Extender camera to HDVI
- HD-SDI Over Fiber Extender to HD-SDI or HDVI
HD Fiber Extender camera to HD-SDI
The HD fiber-link solution is consist of camera and receiver box, The HD camera is built-in fiber transmitter, delivering high definition video through optic-fiber cable without convertor, up to 2 kilometers. It can eventually get standard HD-SDI by HD Fiber receiver. In additional, it also supports digital audio and AUX (bidirectional control) along with one core optic fiber.

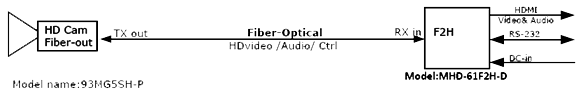

HD Fiber Extender camera to HDVI
The HD fiber-link solution is consist of camera and receiver box, The HD camera is built-in fiber transmitter, delivering high definition video through optic-fiber cable without convertor, up to 2 kilometers. It can eventually get standard HDVI by HD Fiber receiver. In additional, it also supports digital audio and AUX (bidirectional control) along with one core optic fiber.

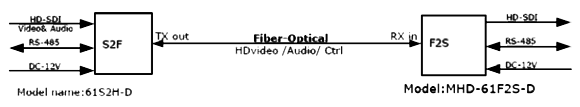

HD-SDI Over Fiber Extender to HD-SDI or HDVI
The HD fiber-link solution is consist of convertor and receiver, The convertor can receive HD-SDI and RS-232 signal and Passes all data to receiver by one core fiber, including HD-video , embedded audio and ancillary ID,up to 2Km. the receiver can output standard HDVI or HD-SDI interface eventually.
