Features:

1/3” 1.3 Megapixel(Aspect Ratio 4:3 ) CMOS camera
Simultaneous video out of the HDTV and SDTV
Hi Resolution: Over 800TVL(Enhance mode/Luminance)
Minimum illumination : >0.1lux
Multi-format video output : 720p50/60Hz 1080p/25/30Hz 1080i50/60
SDV: CVBS NTSC/PAL
HDV:YUV 16 bit EIA/CEA-861 or HD-SDI/HDVI/Optic-fiber
Video scaler: Digital PTZ/ scaling-up/down IR-cut removable control
Peak/BLC/HLC/D-WDR/MIRROR/FLIP/
White Balance -ATW/AWB/R-Y/R-B
OSD/ Protocol

System Spec
OSD Manual
Module
C/CS Box type
Dome
Bullet
Download

SERIES NAME.	MG5
IMAGE SENSOR	1/3-INCH Megapixel CMOS Sensor
TOTAL PIXELS	1384(H) X 1076(V) approx. 1.49M pixel
EFFECTIVE PIXELS	1280(H) X 960(V) 4:3/ 1280(H) X 720(V) 16:9 selectable
SCANNING SYSTEM	Progressive scan
SYNC SYSTEM	Internal
MINIMUM ILLUMINATION	0.1 Lux @ AGC on /Sens-up off/ F1.2
RESOLUTION	Over 800 TV-Line (*1)
ICR-Set CONTROL	Auto, External-control(IR-Cut Removable filter Optional function)
GAIN CONTROL	Auto, manual
EXPOSURE CONTROL	Auto, manual, IRIS priority
S / N RATIO	48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS	AES (Rolling shutter) / ALC-DC lens
VIDEO FORMATOUT	Image Aspect: Full(1280X960)/Normal(1280X720) HDV 16:9 (Mode: Squeeze or Cropped): 720p50/60Hz; 720p 25/30Hz; 1080p25/30Hz;1080i 50/60 Hz ; SDV(4:3)(Mode: Squeeze or cropped: NTSC/PAL(4:3/16:9)
DNR control	3D/2D Noise Reduction (Off/Low/Middle/High)
DIGITAL VIDEO OUT(HDV)	HD-SDI (SMPTE292M) HDVI(High Definition Multi-media Interface) 16 bit Via YUV 422 via Fiber(up to 2 kilometers )-F-link Application HD-SDI,PoC, Ctrl over one coaxial Cable-C-link
ANALOG VIDEO OUT(SDV)	CVBS NTSC/PAL(Selectable by OSD)
GAMMA CORRECTION	CRT / LCD / 1.0
DIGITAL ZOOM	MAX: 4 times/adjustable
PROTOCOL	RS-485(Optional function)
FUNCTION	Peak/ BLC/Fixed shutter/XDR /AGC/ Fixed Gain/Slow shutter/3DNR Control/Day-night/Fog-Reduction / Eclipse/Enhance H-V/UV-Matrix/AWB /ATW/R-Y/B-Y/Freeze/Priority/Motion Detection/Digital P.T.Z /Posi-Negative/Privacy MASK/Cross line/Freeze/Com-ID
OPERATIONAL TEMPERATURE	20℃ TO 50℃
OPERATIONAL HUMIDITY	within 85﹪RH
POWER SUPPLY	DC12V±1V / 280mA(HDVI and HD-SDI type only)

Luminance Menu1/4
ALC	Off/On/FLC	ALC(Auto lighting control) level control, with FLC(flicker less) function
AES	Off/On	AES(Auto exposure shutter ) level control
FIXED SHUTTER	Off/On	1/30(1/25),1/50(1/60),1/100,1/120,1/180,1/350, 1/500.1/750,1/1000,1/2000,1/4000,1/10000.
PEAK AVERAGE	Off/On	To adjust image PEAK ratio, for highlight suppression
BACK LIGHT	Off/On	Brightness compensation for dark area
XDR	OFF/LOW/Middle/HIGH	Digital WDR function which is based on adaptive tone mapping.
GAMMA	CRT/LCD/1.00	Gamma correction function

Luminance Menu2/4
AGC	AUTO/FIX	Electronic sensitivity compensation which can amplify to enhance low video signal up to 36dB
SLOW SHUTTER	OFF/LIMIT TIME	Electronic sensitivity compensation which be by frame accumulation tech.
DNR	OFF/LOW/Middle/HIGH	To reduce random image noise
DAY / NIGHT	DAY/NIGHT/COMPUL	ICR-SET, Control mode: auto or by External controlmode
FOG REDUCTION	OFF/LOW/Middle/HIGH	To enhance the low contrast image such as snow, fog, haze
ECLIPSE	OFF/LOW/Middle/HIGH	To block the area which is saturation of lighting in the image.
ENHANCE	HDV/SDV	Both HD(high definition)Video and SD(standard definition)video can be adjusted by Horizontal and Vertical

Color Menu3/4
COLOR MODE	MONO/OFF/ON/AUTO	Be changeable from color to B/W automatically or fixed in color
WHITE BALANCE	ATW/AWB	Auto tracing white balance and auto while balance –one push
UV MATRIX	U-MATRIX/V-MATRIX	U or V- axis, R/G/B color adjustable.
COLOR GAIN	GAIN CONTROL	Color gain adjustable.
COLOR TONE	R-Y/B-Y	Color vector adjustable.

Setup Menu4/4
LANGUAGE	ENGLISH/JAPANESE/CHINESE(TRADITIONAL/SIMPLIFIED)
TITLE	OFF/ON	TITLE can be set with display.
DEFAULT	LOAD/SAVE/FACTORY	OSD parameter setting load or saving
SPECIAL FUNCTION	SPECIAL FUNCTION (1/2)	PRIORITY	Priority selectable, AGC first or SLOW SHUTTER first.
		MOTION DETECT	Motion detection is on or off
		DIGITAL ZOOM	Zoom ration selectable, and Pan / tile movable
		H / V REVERSE	Mirror and flip
		DISPLAY MODE	HD video format: 720p25/30/50/60;1080p25/30; 1080/50/60 selectable SD video format: 4:3/16:9 Image aspect : Nor.(16:9) or Full(4:3)
		DIGITAL OUT	YUV422 format Spec. setting
		CROSS LINE	displays crosslink with moves by V or H axis
	SPECIAL FUNCTION (2/2)	PRVACY MASK	Image masking Max:16 areas and area size adjustable
		FREEZE	Image freeze
		COLOR BAR	display color bar
		POSI / NEGA	Show positive image or negative
		COMM ID	Set camera ID number for comm. protocol

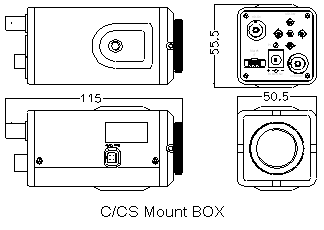

Dimension(Unit : mm / ± 0.5 mm)

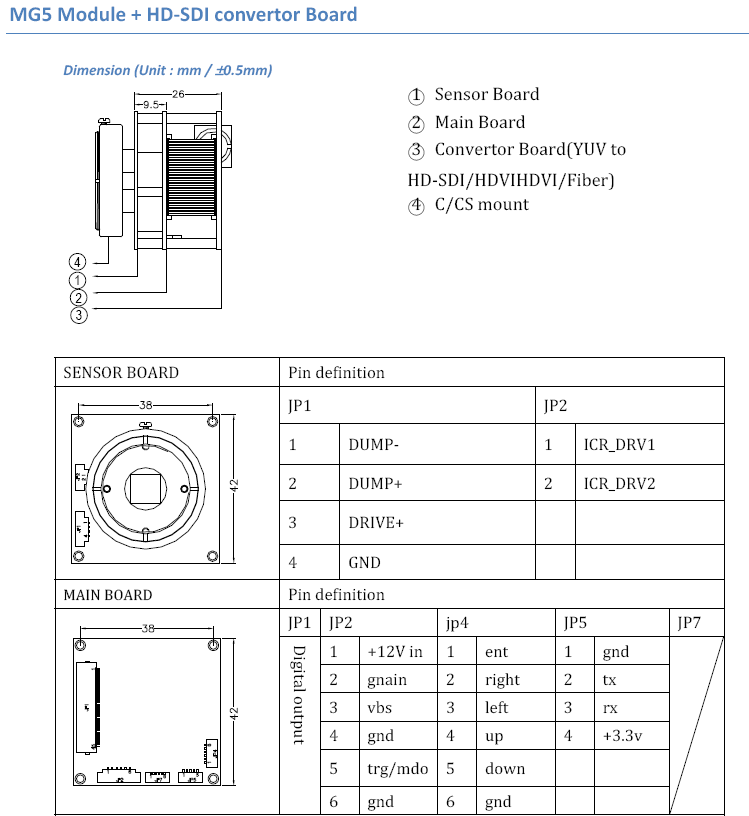

mg5 SPEC

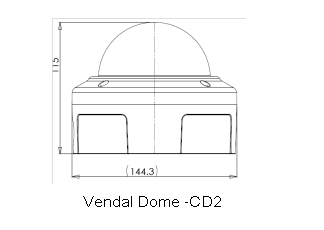

Dimension(Unit : mm / ±0.3mm):
