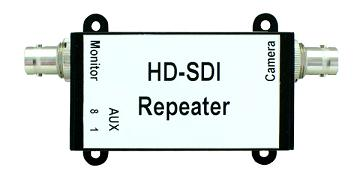

• Support high-definition HD-SDI digital video at 720p60, 1080i60 and 1080p30 formats at all frame rates.
• Integrated cable equalizer for long distance video transmission without loss of quality.
• High quality digital video and audio transmission with near zero latency.
• Re-clocker to resynchronize the signal—bring it back to its original condition.
• Cable Driver to retransmit the signal with its original characteristics restored.
• Support Coaxial-link(C-LINK),
• able to power out by coaxial cable.
• allow transmitting Ctrl signal by coaxial cable.

Function	Spec.
HD-SDI in/out interface	Connectors :BNC 75Ω Cable Impedance:75Ω ± 3Ω Data Throughput:270Mbps – 1.485Gbps (SMPTE 292M)
Aux port	Connector :RJ45 (Cat 3) type Pin definition: RS-485 in (Pair 1 white/green) RS-485 out (Pair 2 white/orange) PWR in/out +24V (Pair 3 white blue)/ Gnd (Pair 4 white/brown)
Power Supply Input (Head End input)	Power in via RJ45(Aux port) 9 ~24V DC, rated current 0.5 – 2A
Power Supply Output (nearest Camera Side output , without PoC camera )	Power out via RJ45(Aux port) VIN @ Head End -1V -Coax DC drop (varies with cable type/length) DC Feed via Coax VIN @ Head End -1V -Coax DC per hop (varies with cable type/length) Maximum 400 mA – 30 mA per
Environmental repeater	Operating Temperature:0 to 50C degree C Relative humidity:Up to 85% non-condensing Storage Temperature:-200C to 700C

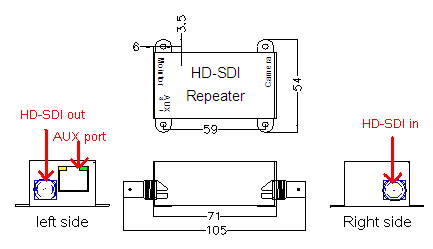

Dimension(Unit:mm):



Example: Extend HD-CCTV links up to 300 meters with power over cable and camera control links over single coax cable.

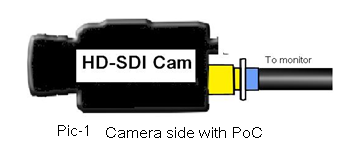

As Pic-1

Connecting the HD Camera (model name: MHD-63MN1HP), which is allowing camera powered by coaxial cable and RS-485 control signal over same cable.

As Pic-2 connecting in-line repeater

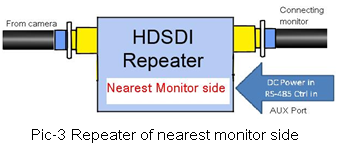

As Pic-3 connecting repeater of nearest monitor side

Each repeater supports a link of over 100m at 1.485Gbit/s, Up to 5 repeater units can be daisy-chained together and all powered over the coax cable by power injected to the first repeater.
