KEY CHARACTERISTIC |
KR85C /KR85CAH |
|
 |
l XDNR (2D/ 3DNoise Reduction ) with Peak Function and
Slow
Shutter
l XDR(eXpand dynamic range-HDR/ATR)
l De-fog funtion(KK85C supported)
l On
Screen Display
l Superior
IRIS Peak level/BLC /Fixed Shutter
l Simultaneously
Linkable Day/Night IR
l Built-in
μ-com
Control
l Powerful
Image Adjustment
l
Saving
the Storage Space under Low Lux |
|
FEATURE DETIALS |
|
RESOLUTION |
540TVL |
|
ACTIVE PIXEL |
NTSC 771(H) X
492(V) |
|
PAL 753(H) X
582(V) |
|
SENSITIVITY |
l
0.01Lux when F1.2 / 30 IRE AGC on Color
l 0.0014Lux
when F1.2 / 40 IRE Sense-up (MAX) |
|
WHITE BALANCE |
l
ATW / AWC /Range:3200 ~ 10000 ºK
l ATW/AWB Gain
R-Y/B-Y |
|
S / N RATIO |
50dB (MIN) /
58dB (TYP)
(Gamma,
Aperture, AGC, OFF) |
|
Sense-up |
(Slow
Shutter)MAX :60
Fields |
|
Mirror Function |
l
H - Horizontal
l
V - Vertical |
|
DNR |
2 / 3D
DNR |
|
B.L.C. Function |
64 Area |
|
IRIS |
3
XDR(ATR/HDR) Function (Optional)
l
Auto Lighting Control
l
Auto Electronic Shutter. or Fixed ,
by PEAK or Average of Lighting
1/100,1/120,1/180,1/350,1/500,1/750,1/1000,1/2000,1/4000,
1/10000sec |
|
IMAGE ADJUSTMENT |
l
De-fog((KK85C supported))
l
Gamma Correction
l
AGC Auto / Manu Selected by OSD(Auto 30dB MAX)
l
Day & Night Control (auto/day/ day off/ External
control)
l
Motion Detection /Mask
l
H - Horizontal /Mirror Function
l
V –Vertical Mirror Function
l
Zoom Function |
|
DOME /IR DOME/BOX/MODULE ORDER INFORMATION |
|
Moade Nme |
Sensor/
Resolution |
Voltage |
Remote Pelco |
Lens (*1) |
Housing (*2) |
|
|
83KR85CAH-DBL |
1/3” 540TVL |
DC12V |
N/A |
3.6mm(*1) |
Plastic STD |
DOME |
|
83KR85CAH-DVF |
1/3” 540TVL |
DC12V |
N/A |
2.8~11mm(*1) |
Plastic STD |
|
83KR85CAH-ABL |
1/3” 540TVL |
Dual Power |
Optional |
3.6mm(*1) |
Plastic STD |
|
83KR85CAH-AVF |
1/3” 540TVL |
Dual Power |
Option |
2.8~11mm |
Plastic STD |
|
83KR85CAH-DBL-IR |
1/3” 540TVL |
DC12V |
N/A |
3.6mm (*1) |
Plastic STD |
IR DOME |
|
83KR85CAH-ABL-IR |
1/3” 540TVL |
Dual Power |
Optional |
3.6mm(*1) |
Plastic STD |
|
63KR85CAH-D |
1/3” 540TVL |
DC12V |
N/A |
C/CS-DC-Lens |
Alloy STD |
BOX |
|
63KR85CAH-A |
1/3” 540TVL |
Dual Power |
Optional |
C/CS-DC-Lens |
Alloy STD |
|
53KR85CH |
1/3” 540TVL |
DC12V |
UART |
Fixed or
DC-Lens |
PCB:
38mm*38mm |
MODULE |
|
Material
Numbers |
Descriptions |
ACCESSORIES
|
|
6-100-0033-02 |
4-pin Cable
(300mm) for OSD Control |
|
5-012-5201 |
Cable of
y-type for Video with Power |
(*1)
Board Lens Type：3.6
mm is standard type
Available options: 2.2, 2.5, 3.0, 4.0, 6.0, 8.0, 12.0, 16.0 mm
Varifocal Lens Type: 2.8mm-11mm is standard type
(*2)
Housing Type:
Note: When you want to place orders
If
your interested KR85C/KR85CAH series models with the details are
listed in TABLE-1
as
above, please notify the Model Name
If
your interested models with the details are not listed in TABLE-1,
please notify your requirements (Model Name, Lens and Housing) to
salespersons.
TABLE -1
|
Name |
PICTURES |
DIMENSIONS |
|

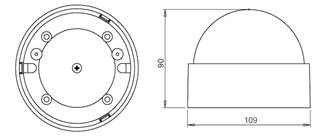

STD DOME |
Plastic Dome
 |
 |
|
TD2 DOME |

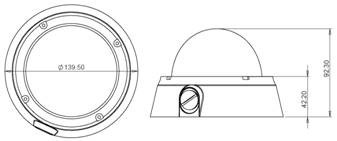

Amore Dome
 |
 |
|
WD4 DOME |

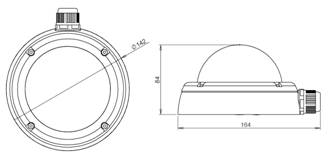

3 Axis Dome
Vandal Proof
 |
 |
|

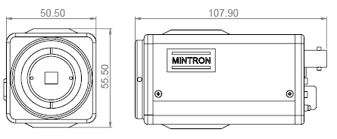

STD BOX |
Alloy Box
|
1 |
VIDEO OUTPUT |
|
2 |
POWER INPUT |
|
3 |
POWER ON INDEX LED |
|
4 |
AUX for
Make an appointment Pelco or
Connector Port |
|
5 |
EXT. DAY/NIGHT CONTRAL INPUT |
|
6 |
OSD-SW “ENTER” |
|
7 |
OSD-SW “PRIDIAN” |
|
8 |
OSD-SW “UP” |
|
9 |
OSD-SW ”DOWN” |
|
 |
|
 |
 |
|
Rear Side
for Dual Power |
Rear Side for
Single Power |
TABLE-2: VIEW ANGLES OF LENS
|
1/3" CCD |
LENS(mm) |
2.2 |
2.5 |
3 |
3.6 |
4 |
4.3 |
6 |
8 |
12 |
16 |
|
H-View |
120° |
104° |
80° |
68° |
60° |
58° |
43° |
34° |
22° |
17° |
|
D-View |
150° |
130° |
120° |
92° |
80° |
78° |
56° |
45° |
25° |
20° |
|
